Our Products

Thick Film Discharge Resistor Modules For Low Power, Gas Filled Capacitors

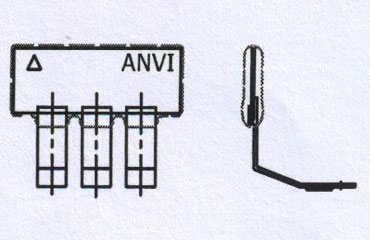

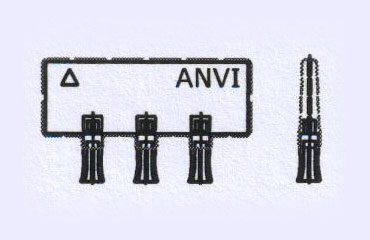

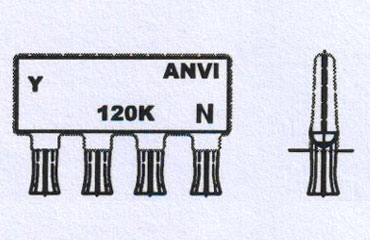

Discharge Resistors

Description: Push In Pin Type, Y And Δ
Value: 50K- 2 M,
Tolerance: 5%,3%
Wattage: 3W -9 W
Terminal distance: 10+10mm, ...., 16+16 mm
Mounting: Vertical

Enquiry

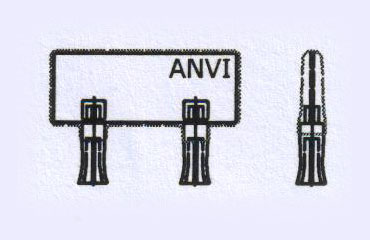

Discharge Resistors

Description: Push In Pin Type, Single Phase
Value: 50K- 2 M,
Tolerance: 5%, 3%
Wattage: 3W -9 W
Terminal distance: 20mm, ...., 32 mm
Mounting: Vertical

Enquiry

Discharge Resistors

Description: Strip Type, Y And Δ
Value: 50K- 2 M,
Tolerance: 5%, 3%
Wattage: 3W -9 W
Terminal distance:10+10mm, ...., 16+16 mm
Mounting: Horizontal

Enquiry

Discharge Resistors

Description: Strip Type, Y And Δ
Value: 50K- 2 M,
Tolerance: 5%, 3%
Wattage: 3W -9 W
Terminal distance:10+10mm, ...., 16+16 mm
Mounting: Horizontal/Vertical





Enquiry

Discharge Resistors

Description: Brass Terminal, Type, Y And Δ
Value: 50K- 2 M,
Tolerance: 5%, 3%
Wattage: 3W -9 W
Terminal distance:10+10mm, ...., 16+16 mm
Mounting: Vertical





Enquiry

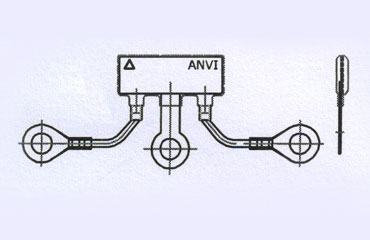

Discharge Resistors

Description: Centre Fix Side Flexible PVC Wire Mounting Holes 8mm,10mm,12mm, Type Y And Δ
Value: 50K- 2 M,
Tolerance: 5%, 3%
Wattage: 3W -9 W
Terminal distance:60+60mm, ...., 120+120 mm
Mounting: Horizontal



Enquiry

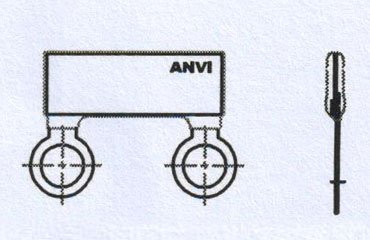

Discharge Resistors

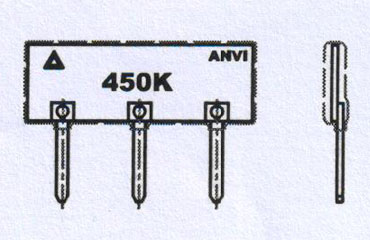

Description: Discharge Resistors, Strip Type Mounting Holes 6mm, Y And Δ
Value: 50K- 2 M,
Tolerance: 5%, 3%
Wattage: 3W -9 W
Terminal distance: 22mm C-C
Mounting: Horizontal


Enquiry

Discharge Resistors

Description: Discharge Resistors, Strip Type Mounting Holes 6mm, Y And Δ
Value: 50K- 2 M,
Tolerance: 5%, 3%
Wattage: 3W -9 W
Terminal distance: 22mm C-C
Mounting: Vertical


Enquiry

Discharge Resistor

Description: Discharge Resistor, Push In Pin Terminal, In Y Configuration
Value: 50K - 2m
Tolerance: 5%
Wattage: 3W -9W
Terminal distance: 10+10mm, ………16+16mm
Mounting: Vertical

Enquiry

Discharge Resistor

Description: Thick Film Resistor With Strip Terminals Mounting Holes 6mmø, 10mmø, 12mmø
Value: 50K - 1m
Tolerance: 5%
Wattage: 3W - 9W
Terminal Distance: 20mm, …….70mm
Mounting: Vertical/ Horizontal

Enquiry

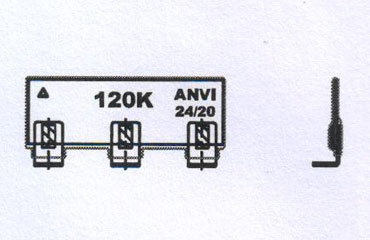

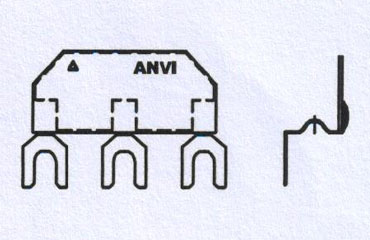

Discharge Resistor

Description: Thick Film, Strip Terminal In ∆ Formation
Value: 50k - 1M
Tolerance: 5%
Wattage: 3w - 9w
Terminal Distance: 10+10mm, ………16+16mm
Mounting: Vertical


Enquiry

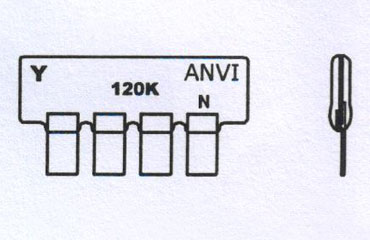

Discharge Resistor

Description: Discharge Resistor, Strip Terminal In Y Configuration
Value: 50k - 2M
Tolerance: 5%
Wattage: 3w - 9w
Terminal Distance: 10+10mm,………16+16mm.
Mounting: Vertical


Enquiry

Capacitor Discharge, Oil Immersed Resistors For High Voltage

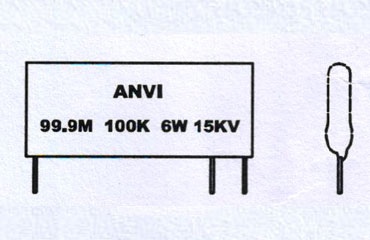

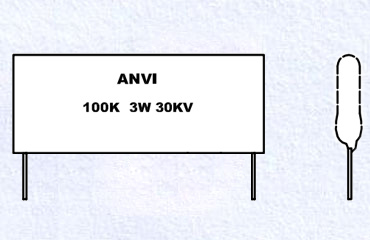

Oil Immersed Resistors

Description: Thick Film, Flat, High Voltage, Non Inductive, Oil Immersed Resistors For HV Capacitors
Value: 250k - 10M
Tolerance: 5%
Wattage: 5w - 10w
Terminal: Axial/ Radial
Terminal Distance: As Required


Enquiry

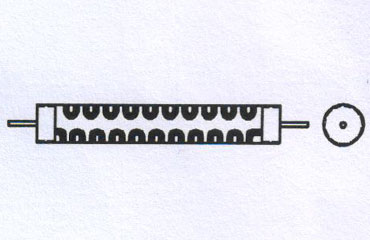

Oil Immersed Resistors

Description: Thick Film Round Non-Inductive Oil Immersed Resistors For HV Capacitors
Value: 250k - 109M
Tolerance: 5%
Wattage: 5w - 10w
Terminal: Axial



Enquiry

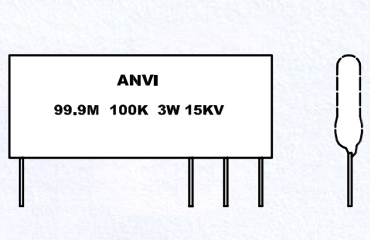

Ultra High Precision High Voltage Resistors

Ultra High Precision High Voltage Resistors

Description: Thick film Voltage Dividers Value: 20 M - 5G or As Per Requirement
Tolerance: 2%, 5%
Wattage: 2W and Higher
Ratio: 1000:1, 2000:1, 3000:1
Mounting: Axail/Radial



Enquiry

Ultra High Precision High Voltage Resistors

Description: Thick film Voltage Isolated Resistors
Value: As per requirement
Wattage: 2W and higher
Tolerance: 5%
Ratio: 100:1, 2000:1, 3000:1



Enquiry

Ultra High Precision High Voltage Resistors

Description: Thick film Voltage Resistors
Value: 10K to 1G or as per requirement
Wattage: 2W and higher
Tolerance: 5%
Ratio: 100:1, 2000:1, 3000:1




Enquiry

1 Watt Discharge Resistor Configurations For Gas Filled Capacitors

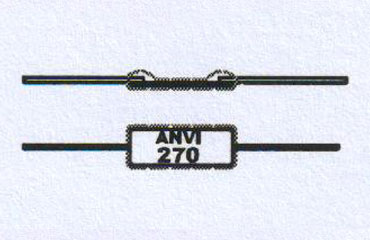

1Watt Discharge Resistor/Configuration

Description: Thick Film 1w, Non Induction Resistor
Value: 50K - 1m
Tolerance: 5%
Wattage: 1W
Terminal: Axial


Enquiry

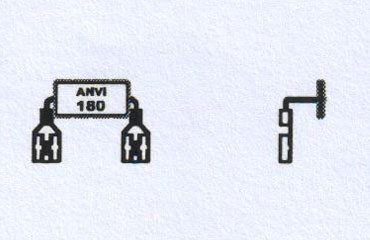

1Watt Discharge Resistor/Configuration

Description: Thick Film 1w, Push In Clip Terminal, Non Induction Resistor
Value: Vertical
Tolerance: Vertical
Wattage: Vertical
Terminal Distance: As Required
Mounting: Vertical

Enquiry

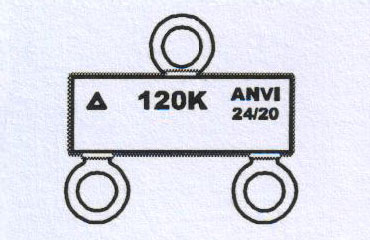

1Watt Discharge Resistor/Configuration

Description: Thick Film Resistor, Push In Clip Terminal In ∆ Formation
Value: 50K - 1m
Tolerance: 5%
Wattage: 3W
Terminal Distance: As Required
Mounting: Vertical

Enquiry

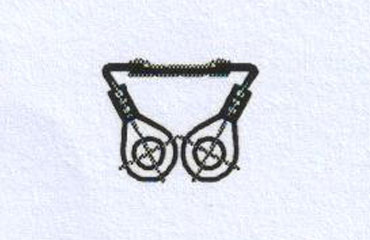

1Watt Discharge Resistor/Configuration

Description: Thick Film, Strip Terminal With Mounting Holes.
Value: 50K - 1m
Tolerance: 5%
Wattage: 3W - 6W
Terminal Distance: 6mm, …12mm



Enquiry

1Watt Discharge Resistor/Configuration

Description: Thick Film, Single Resistor, Custom Design In ∆ & Y, Strip Terminal
Value: 50K - 1m
Tolerance: 5%
Wattage: 3W - 6W
Terminal Distance: As Required



Enquiry

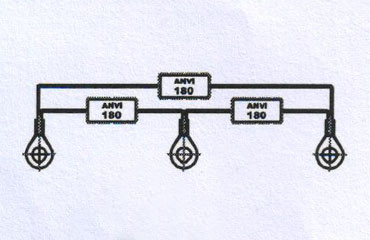

1Watt Discharge Resistor/Configuration

Description: Thick Film, Single Resistor, Custom Design In ∆ & Y, Strip Terminal
Value: 50K - 1m
Tolerance: 5%
Wattage: 3W - 6W
Terminal Distance: As Required



Enquiry

1Watt Discharge Resistor/Configuration

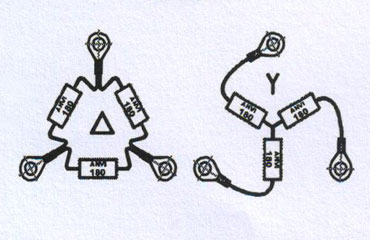

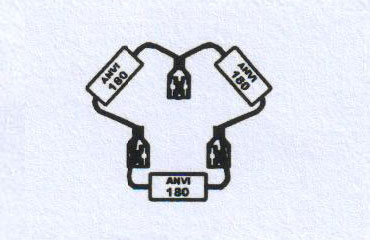

Description: Thick Film, Flexible Wire Resistor In ∆ For Direct Fixing To Terminal Block
Value: 50K - 1m
Tolerance: 5%
Wattage: 3W - 6W
Terminal Distance: 60+60, ……, 120+120mm
Mounting: Horizontal
Enquiry

Solid Carbon Resistors

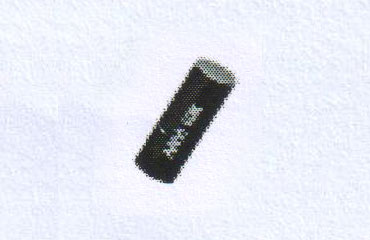

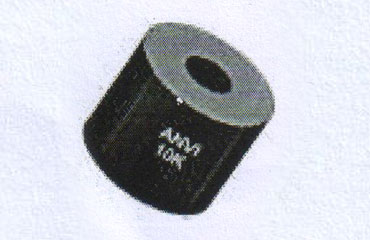

Solid Carbon Noise Suppression Resistor

Description: Non Inductive, Bulk Carbon Ceramic Resistor, High Power & Energy Dissipation In Compact Size Used As Dummy Ariel Loads, Over Voltage Protection And Capacitor Discharge.
Value: As Per Requirement
Tolerance: 10%, 20%
Wattage: As Per Requirement

Enquiry

Noise Suppression Bulk Carbon, Ceramic Resistor for Automobiles

Description: These Resistors are used Primarily in Spark Plugs for Proper Vehicle Operations.
Value: As Per Requirement
Tolerance: 10%, 20%
Wattage: As Per Requirement


Enquiry

Fuel Sensors for Automobiles

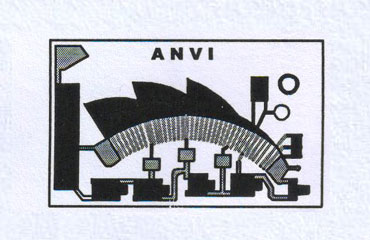

Fuel Level Sensor Resistor Card

Description: Thick film, Customized design for different customers






Enquiry

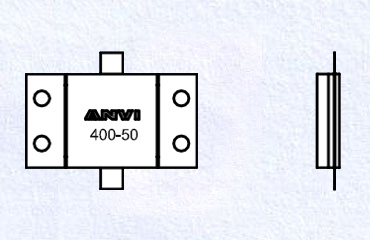

Flange Mount Resistors

Fuel Level Sensor Resistor Card

Description: Thick Film, High Wattage, Aluminium Nitride Flange Mount Termination
Value: As per requirement
Wattage: 50 W to 200W






Enquiry

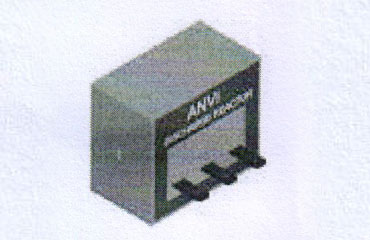

Discharge Reactor

Discharge Reactor

Description: The Discharge Reactor Replaces The Common Fixed Resistors And Additional Rapid Discharge Resistors And Substantially Reduces The Heat Losses Inside The Capacitor.
Value: As Per Customer Specification
Mounting: From Side of The Terminal Block
Terminal Distance: 10+10,12+12,15+15,17+17MM

Enquiry
